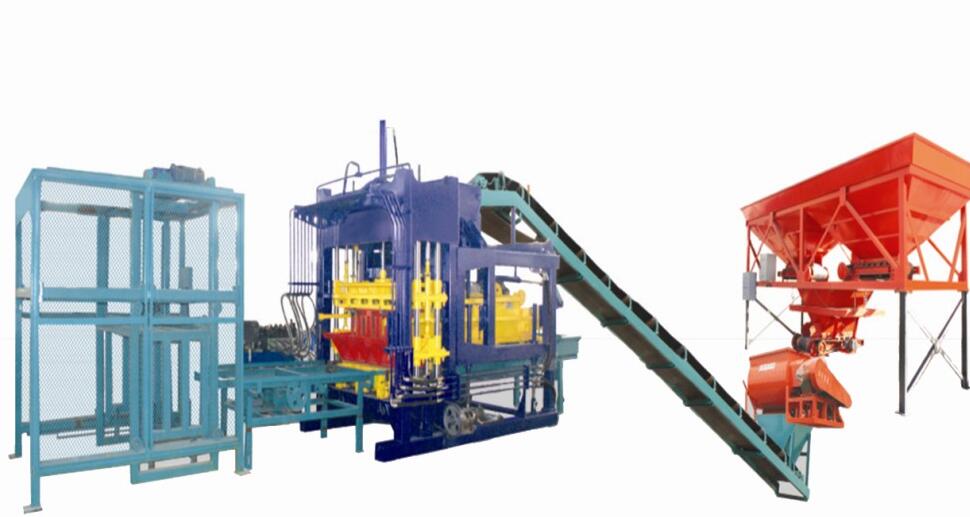

Hydraulic Brick Machine JPM-03

Product Name: Hydraulic Brick Machine JPM-03
Model NO.: JPM-03

Product Details: Hydraulic Brick Machine JPM-03

Feature:
1Using the latest vibration patent technology build abundant vibration machine, make double handed anti-vibration effect is even more significant
2Reciprocating dial the fork type forced rapid cloth even
3Combined with hydraulic shock, to ensure product evenly density
4 Automatic control, uses the Japanese import computer PC control, effective make mechanical vibration and hydraulic pressure closely, high-yield and low failure rate
5 Coal fly ash slag other industrial wastes could be used as raw material
6 Slag mixed up to 75%
7 Supporting vibration machine, automatic yards improving production efficiency, and made great saves human
8 Intensity level 5-70mpa
9 Equipment production ability greatly raised, suitable for big medium size brick field

Main technical paramete

Product specification (LWH)(mm)	Model number	Per hour yield	Produce period
24011553(mm)Standard brick	32 Piece	6300 Piece	18 Second/Time
390190190(mm)Hollow brick	5 Piece	990 Piece	18 Second/Time
24011590(mm)Multihole brick	16 Piece	3168 Piece	18 Second/Time

Ordinalnumber	Ltem	Parameter
1	Actuating shock force	78KN
2	Frequency of shock	5000(Time/Minute)
3	Amplitude	15mm
4	Noise	85db(A)
5	Shock time	7(Second/Time)
6	Overall dimension	300022002900(mm)
7	Installed capacity	31.7KW
8	Weight of complete machine	5T
9	Maximum pressure	10 T
10	Give piank size	110058025(mm)
11	Operation number	10 (person)
12	Use a ground of area	≥5000 m²
