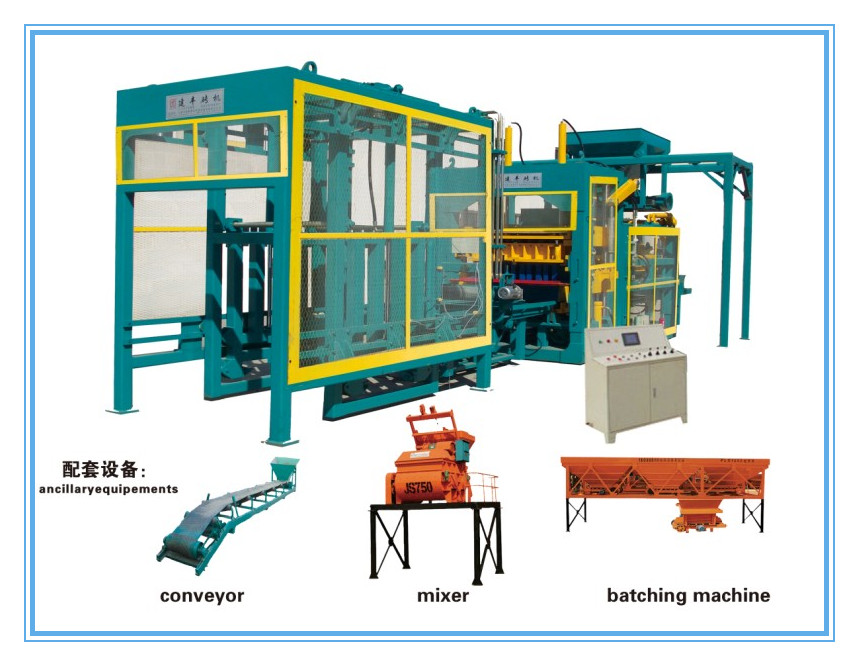

Hydraulic Brick Machine JPM-10

Product Name: Hydraulic Brick Machine JPM-10
Model NO.: JPM-10

Product Details: Hydraulic Brick Machine JPM-10

Features
1 adopt to set up plentiful lately vibrate a patent technique a double to flap Taiwan ,make to spread to flap effect to show Zhao more.
2 the back and forth stir a fork a compulsive fast cloth even
3 a rouse earthquake and liquid to press to combine assurance product even airtight solid degree
4 full-automatic control, adopt Japanese home computer Pc a control .vaild of educational system machine and liquid press of close match, finished product rate GAO, the breakdown rate is very low
5 powder ash from stove, stove residue, coal GAN STONE ETC.THE INDUSTRY DISCARD A RESIDUE ALL CAN THE FUNCTION IS AN ORIGINAL MATERAL
6 discard residue Chan can reach to 75%
7 Kit auto the code flap machine and make exaltation production efficiency, and consumedly saved manpower
8 strength grade 5-354Mpas
9 strength grade 5-354Mpas
10 the equipments produce the ability significant exaltation and be applicable to greatly, medium-sized brickyard

Main technical parameter

Product specification (LWH)(mm)	Model number	Per hour yield	Produce period
Standard brick24011553(mm)	51 Piece	12240 Piece	15 Second/Time
Hollow brick390190190(mm)	10 Piece	2400 Piece	15 Second/Time
Multihole brick24011590(mm)	24 Piece	5760 Piece	15 Second/Time

Ordinalnumber	Item	Parameter
1	Actuating shock force	90KN
2	Frequency of shock	5000(Time/Minute)
3	Amplitude	15mm
4	Noise	85db(A)
5	Shock time	8(Second/Time)
6	Overall dimension	5800017002900(mm)
7	Installed capacity	52KW
8	Weight of complete machine	15T
9	Maximum pressure	10T
10	Give piank size	115088030(mm)
11	Operation number	10 (person)
12	Use a ground of area	≥6000 m²
